Dimensions standard version Fig. 107 - 107 C

WIG welded hose connections for stainless steel-metal hoses. Standard versions of the connections: steel.

Likewise, these connections can be supplied in rustproof steel and also in other rustproof, austenitic steels.

Seal cone and steel union nut with thread as per EN 10226-1 (DIN 2999)
Datatable: Seal cone and steel union nut with thread as per EN 10226-1 (DIN 2999)

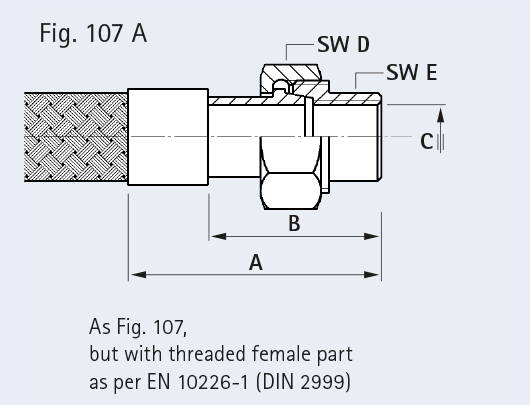

As Fig. 107, but with threaded female part as per EN 10226-1 (DIN 2999)

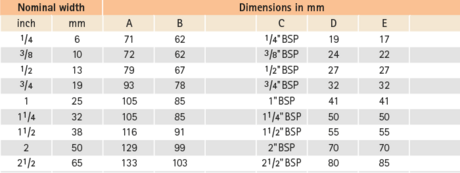

Datatable: As Fig. 107, but with threaded female part as per EN 10226-1 (DIN 2999)

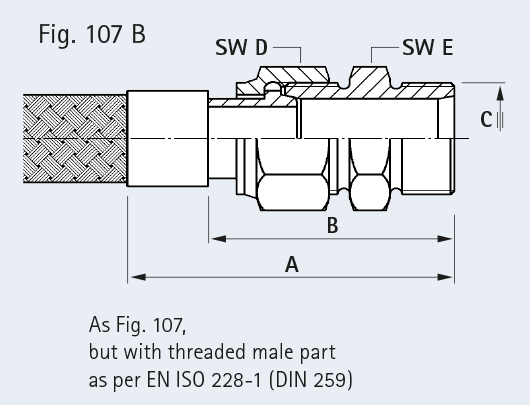

As Fig. 107, but with threaded male part as per EN ISO 228-1 (DIN 259)
Datatable: As Fig. 107, but with threaded male part as per EN ISO 228-1 (DIN 259)

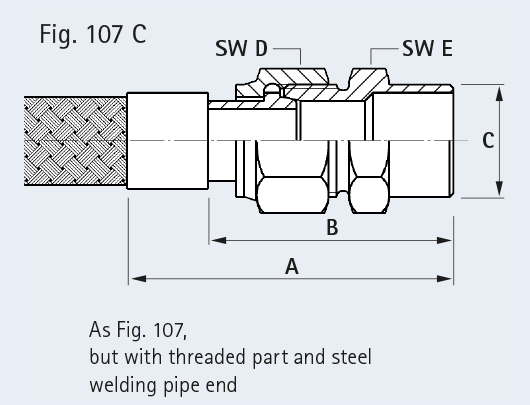

As Fig. 107, but with threaded part and steel welding pipe end

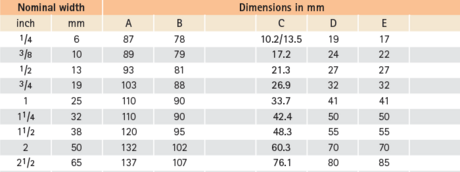

Datatable: As Fig. 107, but with threaded part and steel welding pipe end

Subject to amendment
