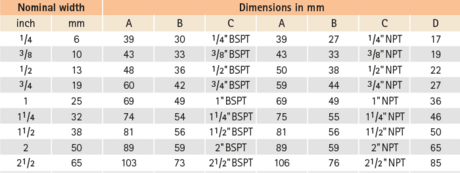

Dimensions standard version Fig. 101 - 103

WIG welded hose connections for stainless steel-metal hoses. Standard versions of the connections: steel.

Likewise, these connections can be supplied in rustproof steel and also in other rustproof, austenitic steels.

Weld-on pipe sockets 1/4" - 4"

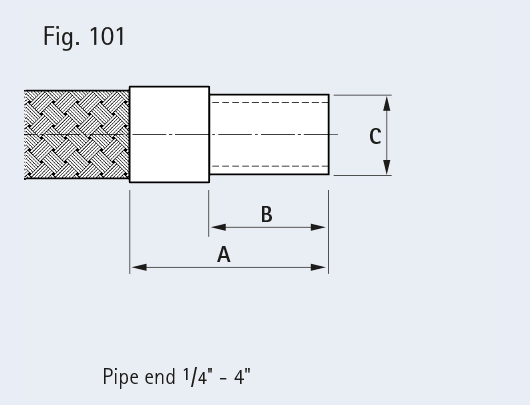

Dimensions standard version Abb. 101
Anschweißrohrstutzen 5" - 14"
Dimensions standard version Abb. 101

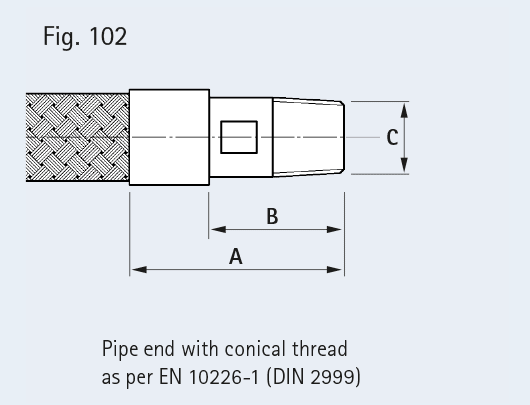

Pipe end with conical thread as per EN 10226-1 (DIN 2999)
Pipe end with conical thread as per EN 10226-1 (DIN 2999)
Hex nipple with conical thread as per EN 10226-1 (DIN 2999)
Hex nipple with conical thread as per EN 10226-1 (DIN 2999)
