Hose Connections

Standard versions for stainless steel metal hoses

The connections are available in steel, rustproof steel or other material. Fixed or loose flanges with collar in compliance with EN-DIN-ASA-BS etc. All connections are welded to the hoses in the WIG procedure. Customised products are also available.

Unless otherwise stated, the DIN standard EN 10806 applies (pipes – connection parts for corrugated metal hoses).

Please note

Plug seals  of conventional couplings of various origins cannot be replaced.

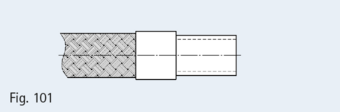

Weld-on pipe sockets

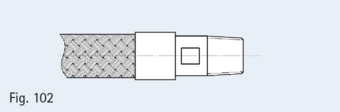

Pipe nipple with tapered
pipe thread in compliance with EN 10226-1 (DIN 2999)

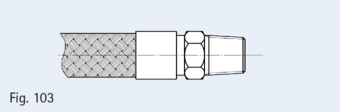

Nipple with hexagonal and tapered
pipe thread in compliance with EN 10226-1 (DIN 2999)

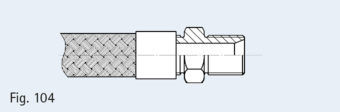

Nipple with cylindrical pipe thread in compliance with EN ISO 228-1 (DIN 259), with inner cone 60° and sealing surface against hexagon

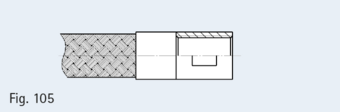

Sleeve with cylindrical pipe thread in compliance with EN 10226-1 (DIN 2999)

Sleeve with hexagonal and cylindrical pipe thread in compliance with EN 10226-1 (DIN 2999), sealing surface on face side

Conical nipple and union nut with pipe thread in compliance with EN 10226-1 (DIN 2999)

As Fig. 107, but with screw-in part with pipe thread in compliance with EN 10226-1 (DIN 2999)

As Fig. 107, but with screw-in part with pipe outer thread in compliance with EN ISO 228-1 (DIN 259)

As Fig. 107, but with screw-in part with weld-on pipe sockets

TYP GF 340 three-part coupling with plug washer, material malleable iron, with pipe thread in compliance with EN 10226-1 (DIN 2999)

Welding neck flange in compliance with EN 1092-1, e.g. as shown here Type 11

Loose flange with collar in compliance with EN 1092-1, e.g. as shown here Type 02
