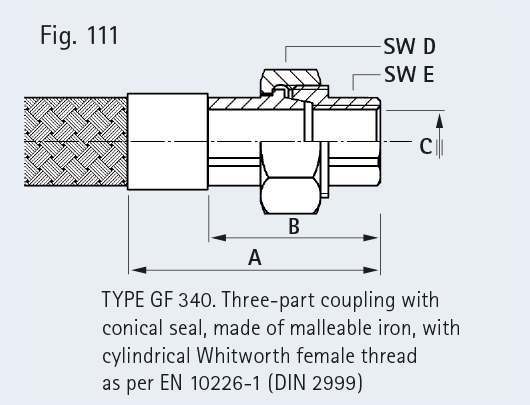

Dimensions of standard version Fig. 111

WIG welded hose connections for stainless steel-metal hoses.
Standard versions of the  connections as stated in the figures.

TYPE GF 340. Three-part coupling with conical seal, made of malleable iron, with cylindrical Whitworth female thread as per EN 10226-1 (DIN 2999)

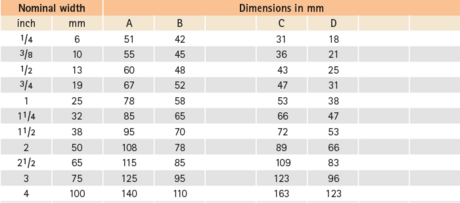

Datatable: TYPE GF 340. Three-part coupling with conical seal, made of malleable iron, with cylindrical Whitworth female thread as per EN 10226-1 (DIN 2999)

Subject to amendment
